SKU: ZEB-ISPS8CH
₹999.00

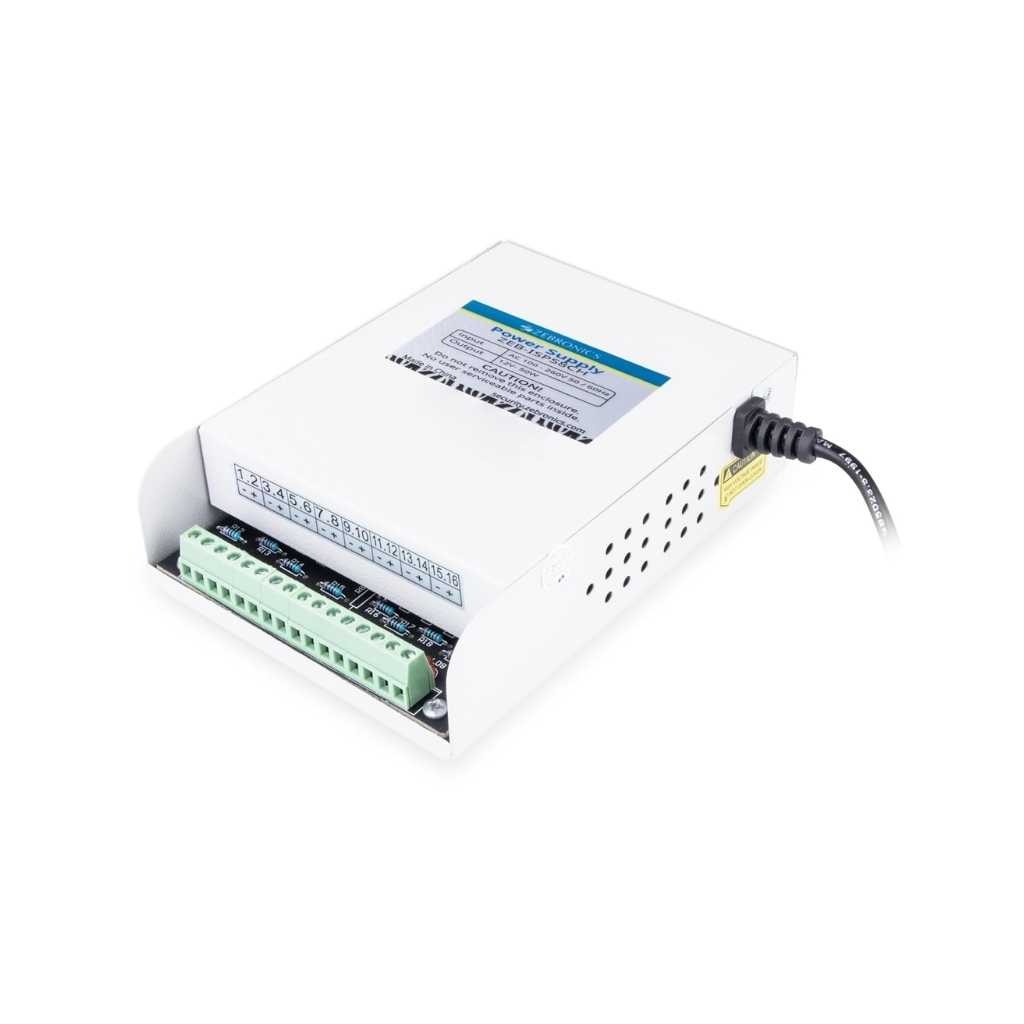

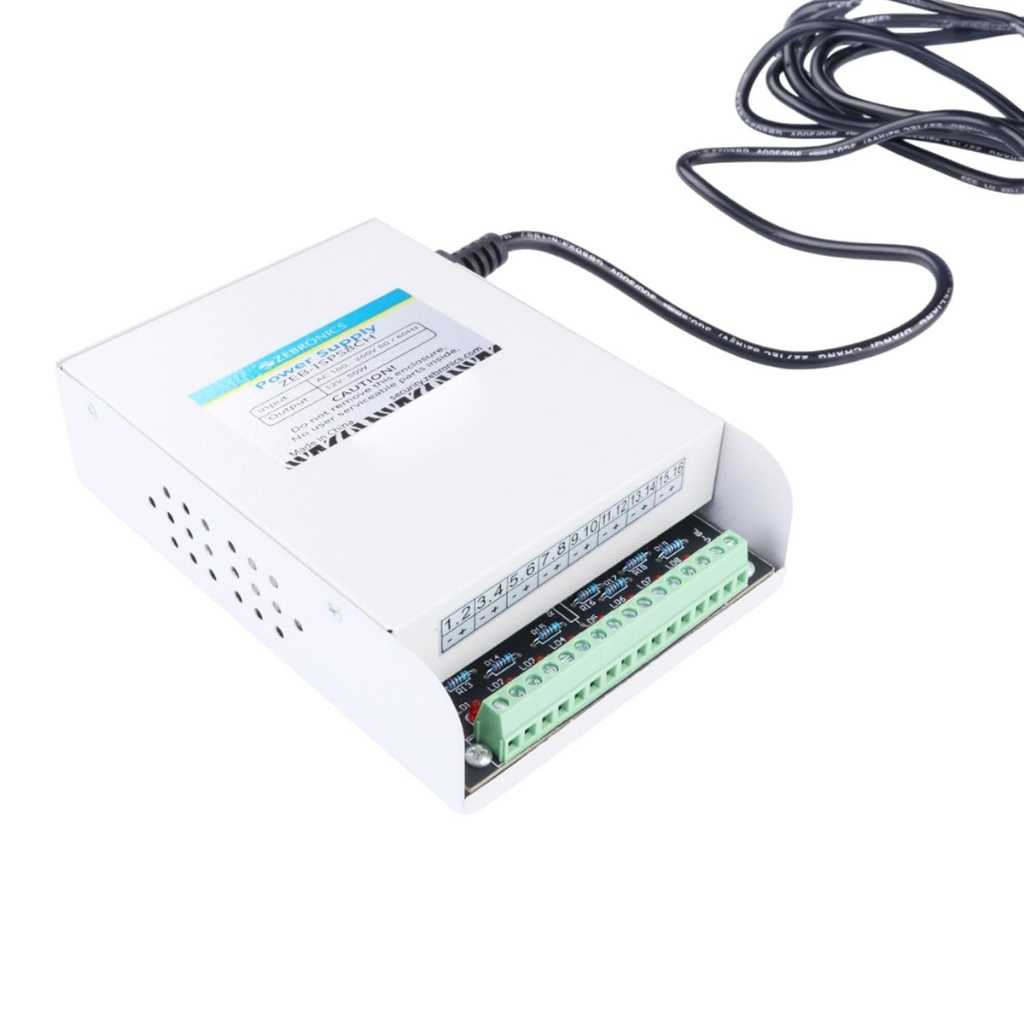

ZEBRONICS ZEB-ISPS8CH CCTV Power Supply delivers stable 12V DC power output for up to 8 surveillance cameras with reliable safety protection. Designed with LED indicators, selectable voltage ranges, and compact durable construction for professional CCTV installations.
Only 5 currently available.
| Specification | Value |
|---|---|
| Product Type | CCTV Camera SMPS Power Supply |
| Brand | ZEBRONICS |
| Model | ZEB-ISPS8CH |
| Input Voltage Range | AC 100V-240V |
| Input Frequency | 50Hz / 60Hz |
| Input Current | 0.75A |
| Output Voltage | DC 12V |
| Output Current | 4.2A |
| Maximum Power Output | 50W |
| Number of Channels | 8 Channel |
| CCTV Camera Support | Up to 8 Cameras |
| Ripple | <500mV |
| Hold-Up Time | 16 ms |
| Turn-On Delay Time | 2 Seconds |
| Rise & Fall Time | 20 ms |
| Output Voltage Range Normal | 11.60V – 12.60V |
| Output Voltage Range Medium | 12.40V – 13.40V |
| Output Voltage Range High | 13.40V – 14.40V |
| Overload Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| LED Indicator Support | Yes |
| Input Terminals | 8-tail Socket |
| Output Terminals | European Terminal |
| Enclosure Material | Plastic |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -10°C to 50°C |
| Product Dimensions | 14.32 × 10.8 × 3.42 cm |
| Package Contents | Power Supply Unit & 1 Meter Power Cord |
