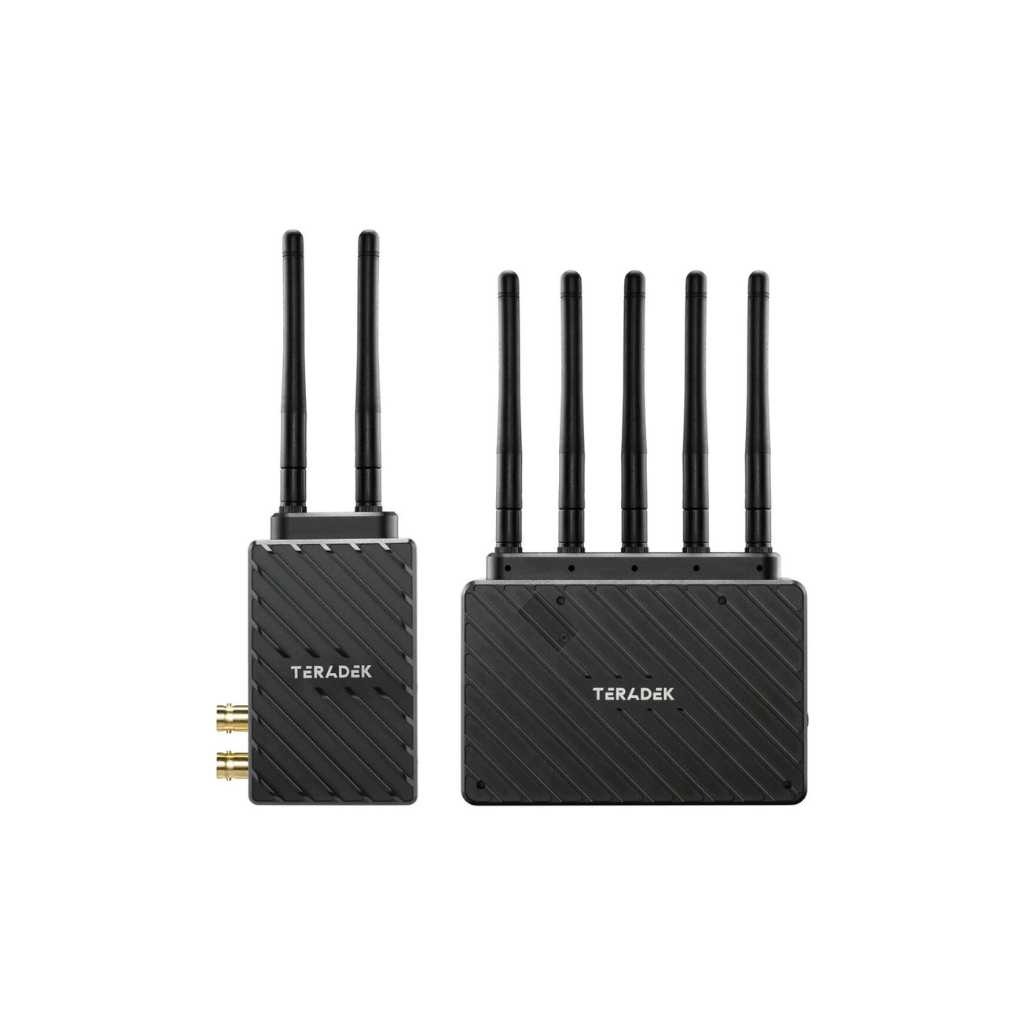

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit

Specification Details Video Resolution Up to 4K UHD (4K30) Video Inputs HDMI, 3G-SDI Video Outputs HDMI, 3G-SDI Supported Formats 480i to 4K UHD Frame Rate Up to 60fps (1080p), 30fps (4K) Transmission Range Up to 750 ft (≈228 m LOS) Latency 0 ms (Zero Delay) Wireless Frequency 6 GHz + 5 GHz Compatibility Color Support 10-bit 4:2:2 HDR (Rec.2020) Transmission Technology Bolt Wireless Protoco Display OLED Display (TX & RX) Audio Support Embedded HDMI/SDI Audio Control Interface Buttons + Mobile App (Bluetooth) Multi-Receiver Support Up to 6 Receivers Streaming Support No Recording Support No Storage Media Not Supported USB Ports Micro-USB / USB HDMI Ports 1 Input / 1 Output SDI Ports 1 Input + Loop Out / 1 Output Power Consumption TX: ~9W / RX: ~11W Build Material Metal Alloy Mounting 1/4"-20 Threads Dimensions Compact Professional Design Weight Approx. 300–350 g per unit (varies by configuration) Operating Temperature Production-grade operation Included Accessories Transmitter, Receiver, Antennas, Cables, Power Adapter Warranty Period 1 Year Warranty Type Manufacturer Warranty Service Support Authorized Service Centers
