SKU: SOLAR-STRING-INV
₹4,69,999.00

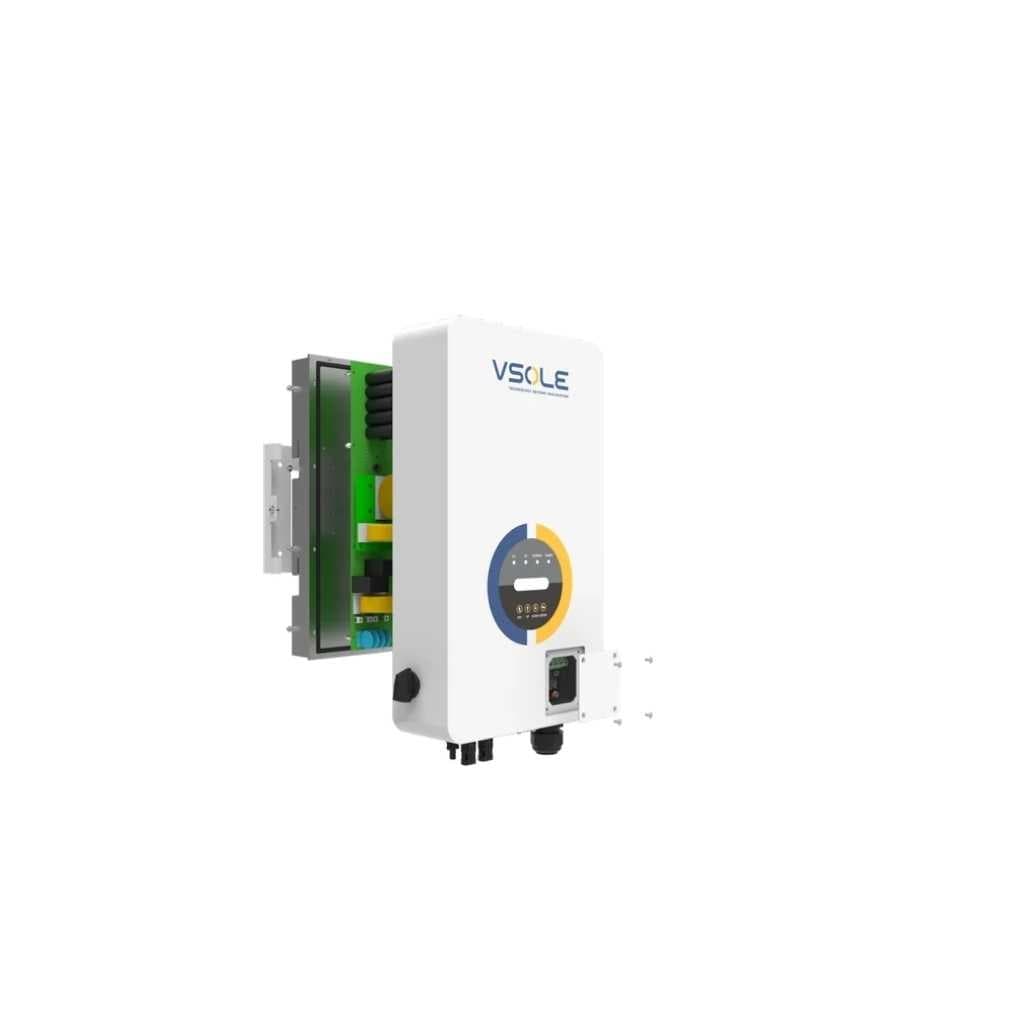

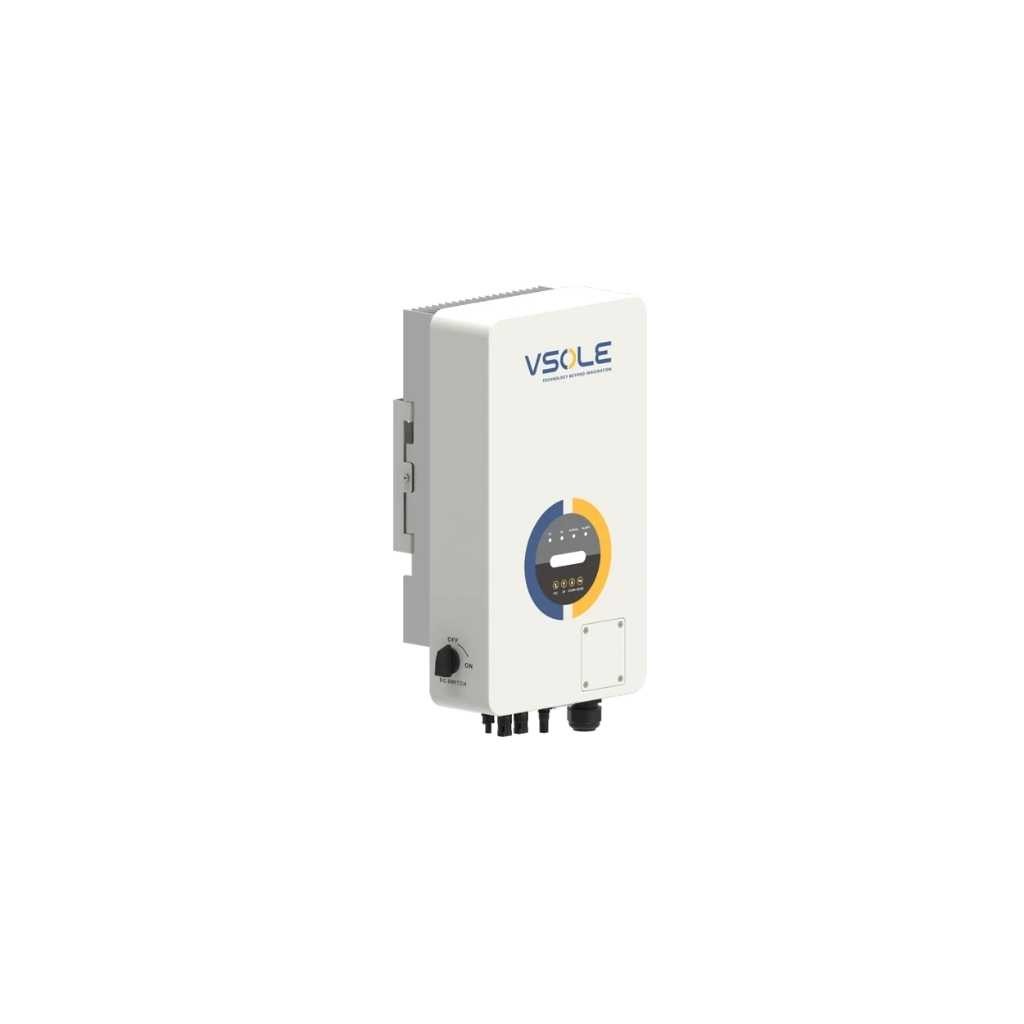

High efficiency solar string inverters designed for residential, commercial, and industrial on-grid solar systems with advanced MPPT technology and IP65 protection.
Only 5 currently available.
| Specification | Details |
|---|---|
| Rated Power Range | 3kW – 100kW |
| Apparent Power Range | 3750VA – 125000VA |
| Inverter Type | Solar String Inverter |
| System Type | On-Grid |
| Output Phase | Single Phase / Three Phase |
| Output Voltage | AC230V / AC415V |
| MPPT Support | Single, Dual or Multi MPPT |
| Efficiency | Up to 98.5% |
| Waveform | Pure Sine Wave |
| Cooling Method | Intelligent Air Cooling |
| Protection Rating | IP65 |
| Frequency | 50Hz / 60Hz |
| Communication Interface | RS485 / WiFi / Ethernet |
| Display Type | LCD / LED Display |
| Installation Type | Wall Mount |
| Protection Features | Anti-Islanding, Over Voltage, Short Circuit, Over Temperature Protection |
| Application | Residential, Commercial and Industrial Solar Systems |
| Grid Compatibility | On-Grid Solar System |
| Warranty Period | 5 Years |
| Weight Range | Approx. 8 kg – 90 kg |
