SKU: SMI-500W-MPPT-120V
₹49,706.00

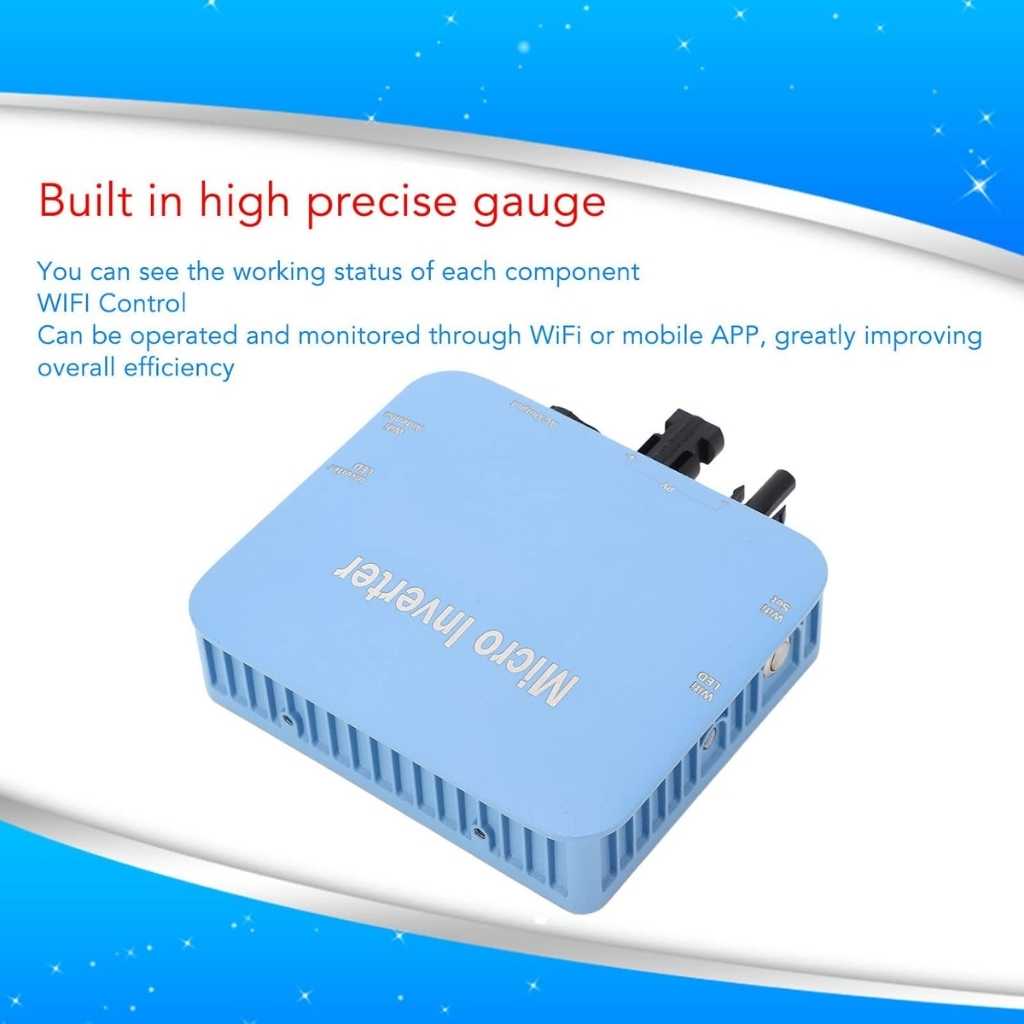

500W solar micro inverter with MPPT technology, pure sine wave output, and automatic voltage recognition for efficient 120V solar grid tie systems.
Only 5 currently available.
| Specification | Details |
|---|---|
| Rated Power | 500W |
| Apparent Power | 625VA |
| Inverter Type | Solar Grid Tie Micro Inverter |
| Waveform | Pure Sine Wave |
| Input Voltage Range | 20V–60V DC |
| Output Voltage Range | 80V–160V AC |
| Rated Output Voltage | 120V AC |
| MPPT Support | Yes |
| Automatic Recognition | Yes |
| Waterproof Rating | IP65 |
| Cooling Method | Natural Air Cooling |
| Housing Material | Aluminum Alloy |
| Frequency | 50Hz / 60Hz |
| Installation Type | Solar Panel / Wall Mount |
| Protection Features | Overload, Over Voltage, Short Circuit, Over Temperature Protection |
| Application | Home Solar Power System |
| Warranty Period | 1 Year |
| Weight | Approx. 1.8 kg |
