SKU: RMUPS-10KVA-01
₹30,000.00

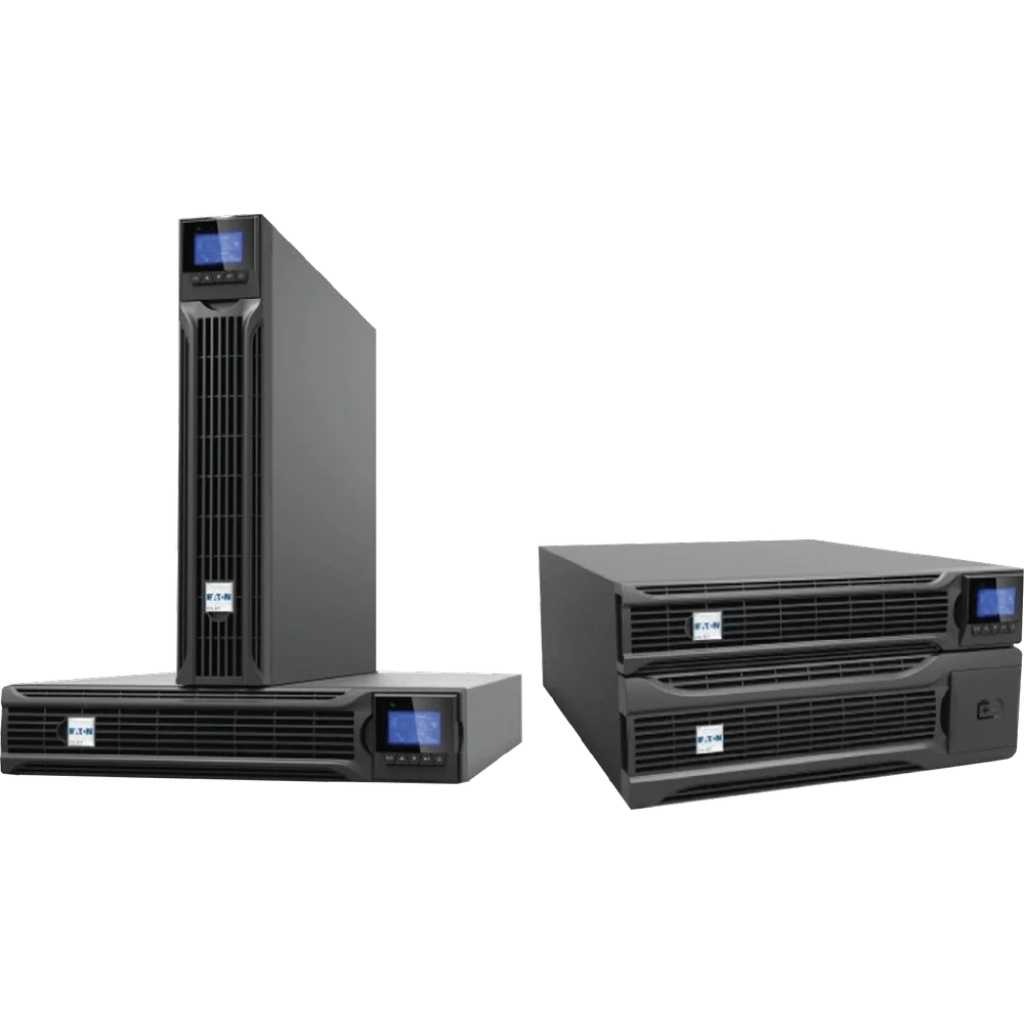

High-performance 10 kVA rack-mounted online UPS designed for servers, data centers, networking equipment, and mission-critical applications
Only 5 currently available.
| Specification | Value |
|---|---|
| Product Type | Rack Mounted Online UPS |
| UPS Capacity | 10 kVA |
| Rated Power | 9 kW |
| Topology | Double Conversion Online |
| Form Factor | Rack Mount |
| Input Voltage Range | 110V – 300V AC |
| Input Frequency | 40Hz – 70Hz |
| Output Voltage | 220V / 230V / 240V AC |
| Output Frequency | 50Hz / 60Hz |
| Output Waveform | Pure Sine Wave |
| Power Factor | 0.9 |
| Efficiency (AC Mode) | Up to 95% |
| Efficiency (ECO Mode) | Up to 98% |
| Battery Type | External VRLA/SMF Batteries |
| Battery Configuration | Configurable Battery Bank |
| Charging Current | Adjustable Intelligent Charging |
| Recharge Time | 6–8 Hours (Typical) |
| Transfer Time | 0 ms |
| LCD Display | Yes |
| LED Indicators | Yes |
| Audible Alarm | Yes |
| USB Interface | Yes |
| RS232 Port | Yes |
| SNMP Support | Optional |
| Emergency Power Off (EPO) | Yes |
| Surge Protection | Yes |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Temperature Protection | Yes |
| Auto Restart Function | Yes |
| Parallel Operation | Supported (Model Dependent) |
| Operating Temperature | 0°C to 40°C |
| Humidity Range | 0–95% Non-Condensing |
| Noise Level | <55 dB |
| Color | Black |
| Rack Size | Standard 19-Inch Rack Compatible |
| Application | Servers, Data Centers, Telecom, Industrial Equipment |
