SKU: NUMAX-RM-20KVA-3PH
₹2,85,000.00

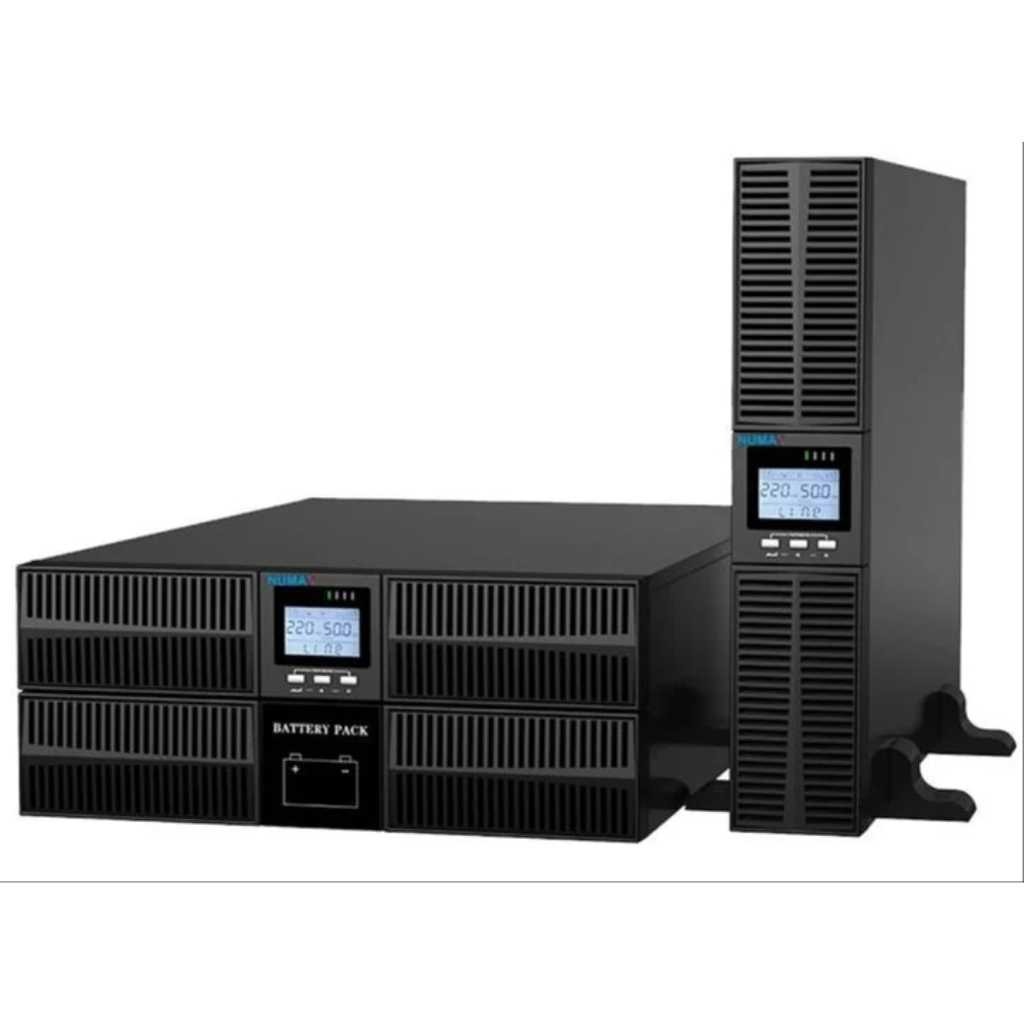

Numax 20 KVA Rack Mount Online UPS provides continuous pure sine wave power with advanced DSP control technology for mission-critical applications.
Only 5 currently available.
| Specification | Value |
|---|---|
| Brand | Numax |
| Model | Rack Model 20 KVA Online UPS |
| UPS Type | Online Double Conversion UPS |
| Capacity | 20 KVA |
| Output Power | 18 KW |
| Input Phase | Three Phase |
| Output Phase | Three Phase |
| Power Factor | 0.9 |
| Topology | Double Conversion Online |
| Form Factor | Rack Mount |
| Rack Compatibility | Standard 19-inch Rack |
| Input Voltage Range | 304V – 478V AC |
| Input Frequency Range | 40Hz – 70Hz |
| Output Voltage | 380V / 400V / 415V AC |
| Output Frequency | 50Hz / 60Hz Auto Sensing |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 0 ms |
| Battery Type | External VRLA / SMF / Tubular Batteries |
| DC Bus Voltage | 192V / 240V DC |
| Charging Method | Intelligent Multi-Stage Charging |
| Fast Charging Support | Yes |
| Recharge Time | 6–8 Hours to 90% Capacity |
| LCD Display | Yes |
| LED Status Indicators | Yes |
| USB Communication Port | Yes |
| RS232 Interface | Yes |
| SNMP Support | Optional |
| Dry Contact Port | Optional |
| Emergency Power Off (EPO) | Yes |
| ECO Mode | Supported |
| Online Mode Efficiency | Up to 95% |
| ECO Mode Efficiency | Up to 98% |
| Surge Protection | Yes |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Battery Deep Discharge Protection | Yes |
| Intelligent Battery Management | Yes |
| Generator Compatibility | Yes |
| Parallel Redundancy Support | Yes |
| Noise Level | Less than 60 dB |
| Operating Temperature | 0°C to 40°C |
| Humidity | 0–95% Non-Condensing |
| Cooling System | Forced Air Cooling |
| Certifications | ISO, CE, IEC Compliant |
| Application | Data Centers, Telecom Equipment, Industrial Systems, Network Infrastructure, Healthcare Equipment |
