SKU: MGTITAN-6.2KW-48V
₹1,42,990.00

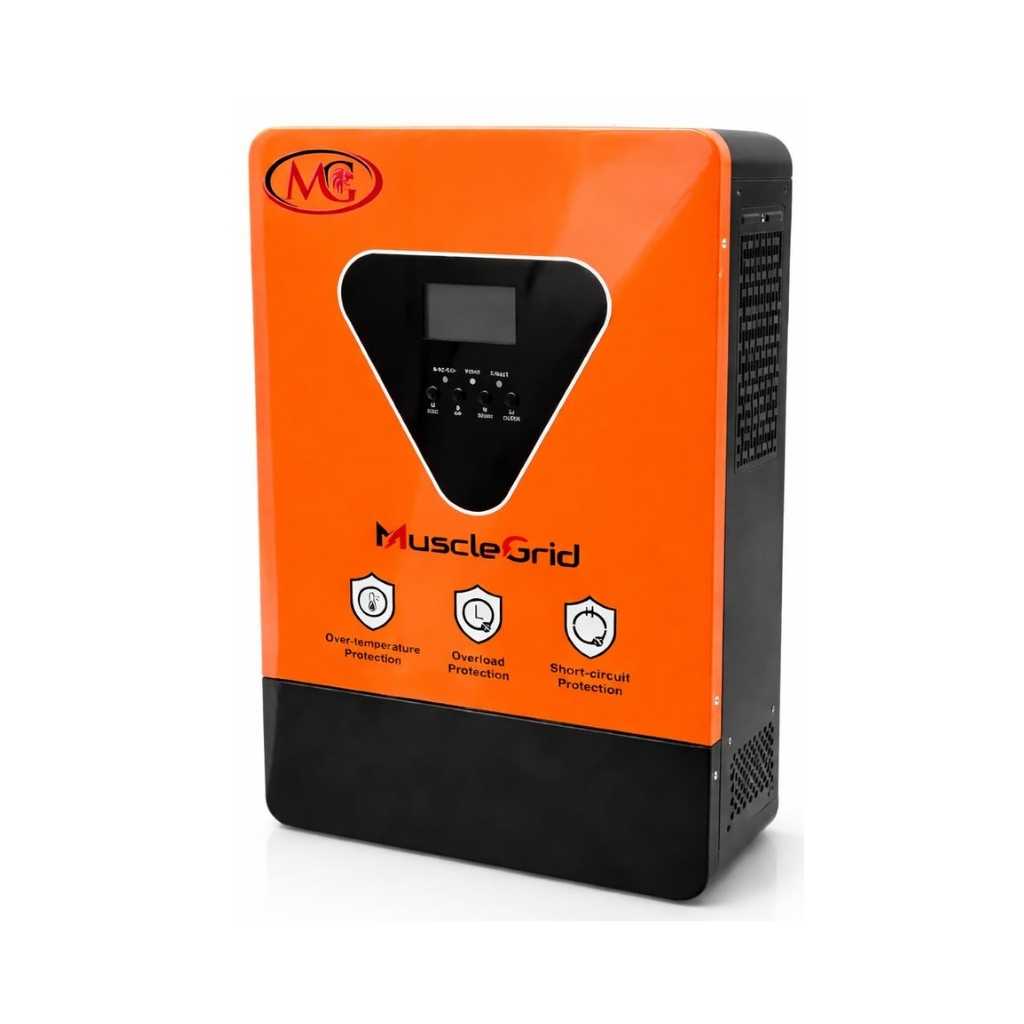

MuscleGrid Titan Series 6.2kW hybrid solar inverter with 120A battery charging, WiFi monitoring, and support for up to 9kW solar panels and parallel inverter operation.
Only 5 currently available.
| Specification | Details |
|---|---|
| Rated Power | 6200W |
| Apparent Power | 7750VA |
| Inverter Type | Hybrid Solar Inverter |
| Battery Voltage | 48V |
| Battery Charger Capacity | 120A |
| PV Input Current | 27A |
| Solar Panel Support | Up to 9000W Solar Input |
| Parallel Support | Up to 9 Inverters |
| Connectivity | WiFi Monitoring |
| Mobile App Support | VoltDoctor Support App |
| Waveform | Pure Sine Wave |
| Output Voltage | AC230V |
| Output Phase | Single Phase |
| Cooling Method | Intelligent Air Cooling |
| Frequency | 50Hz / 60Hz |
| Installation Type | Wall Mount |
| Protection Features | Overload, Over Voltage, Short Circuit, Over Temperature Protection |
| Application | Residential and Commercial Solar Systems |
| Warranty Period | 3 Years |
| Weight | Approx. 15 kg |
