SKU: SE-650
₹1,67,990.00

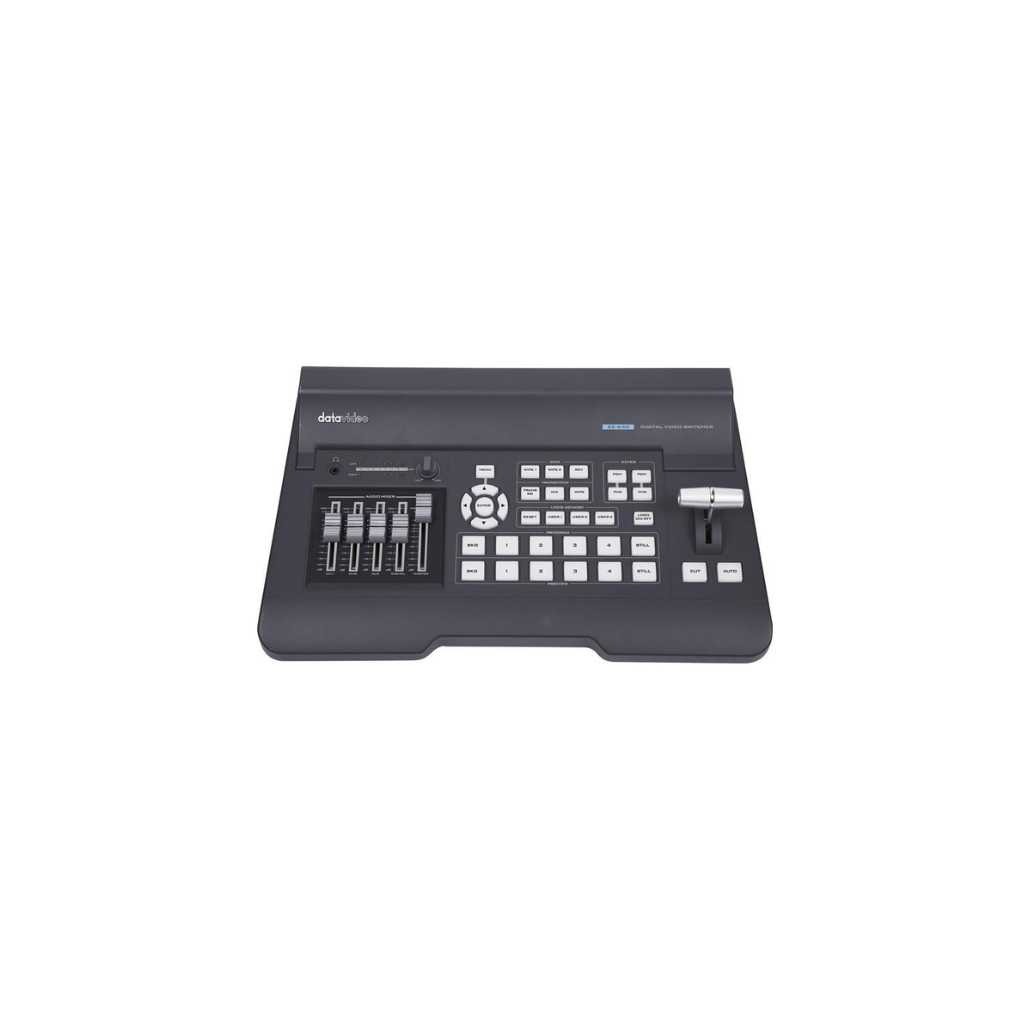

Affordable 4-input SDI/HDMI video mixer with built-in audio mixing, multiview, and professional switching features for live production.
Only 5 currently available.
| Specification | Details |
|---|---|
| Video Inputs | 2 × HD-SDI + 2 × HDMI |
| Video Outputs | 2 × HDMI (Program + Multiview), 1 × HD-SDI |
| Supported Resolution | 1080i / 720p |
| Video Processing | 10-bit (SDI 4:2:2, HDMI 4:2:2 / RGB 4:4:4) |
| Audio Inputs | RCA Stereo + 2 × Mic Inputs |
| Audio Outputs | RCA Stereo + Headphone Out |
| Audio Mixer | Built-in 4-Channel Mixer |
| Embedded Audio | Supported (2 Channels In/Out) |
| Multi-View | Yes (HDMI & SDI Assignable) |
| Keyers | 2 × Upstream Keyers + 1 × Downstream Keyer |
| Effects | Cut, Fade, Wipe (32 patterns), FTB |
| Picture-in-Picture | 1 |
| Logo / Still Store | Yes (Up to 500 Images) |
| Tally Output | DB-15 Interface |
| Remote Control | Ethernet (DVIP Control) |
| Genlock | Internal |
| Build Type | Compact Desktop Switcher |
| Dimensions | 400 × 250 × 82 mm |
| Weight | 1.9 kg |
| Power Consumption | Approx. 29W |
| Operating Temperature | 0°C to 40°C |
| Warranty | 1 Year Manufacturer Warranty |
