SKU: SWATEMMXEPCEXTISO
₹1,74,404.00

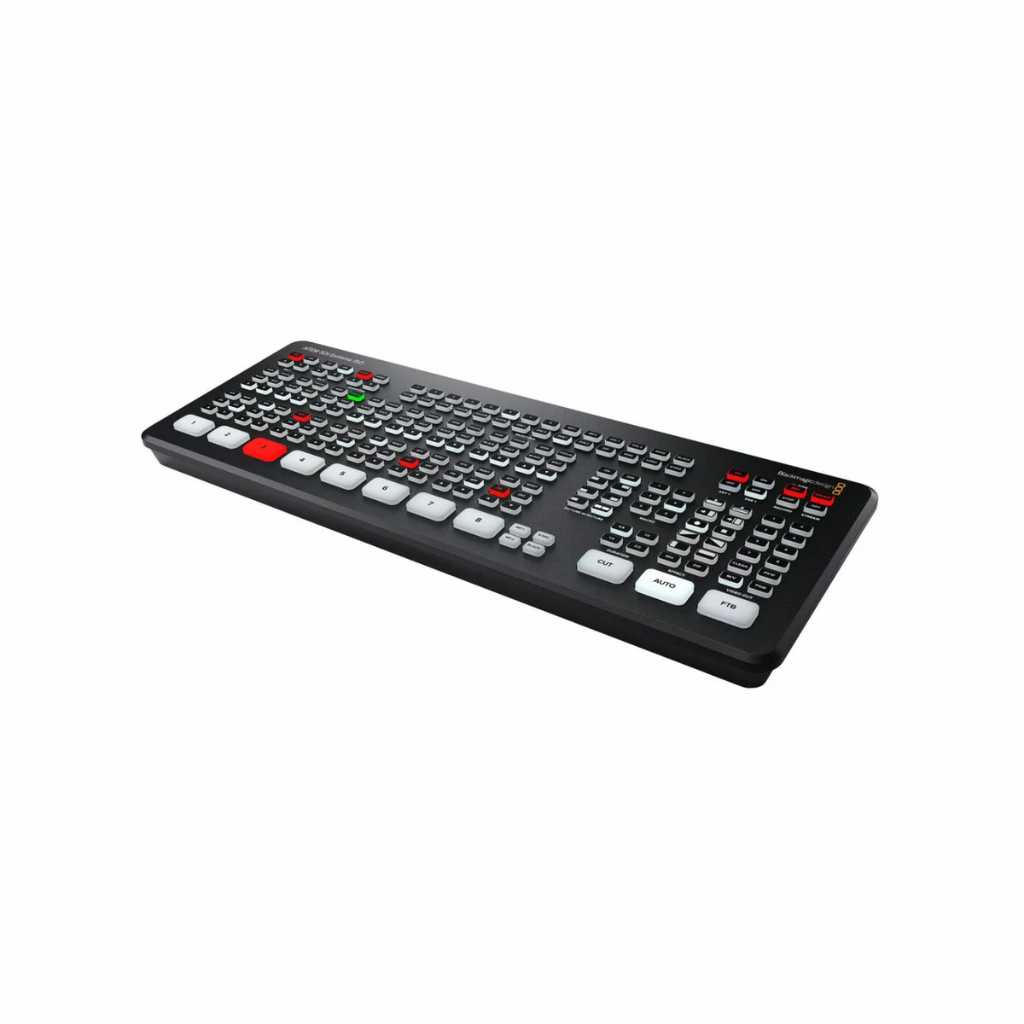

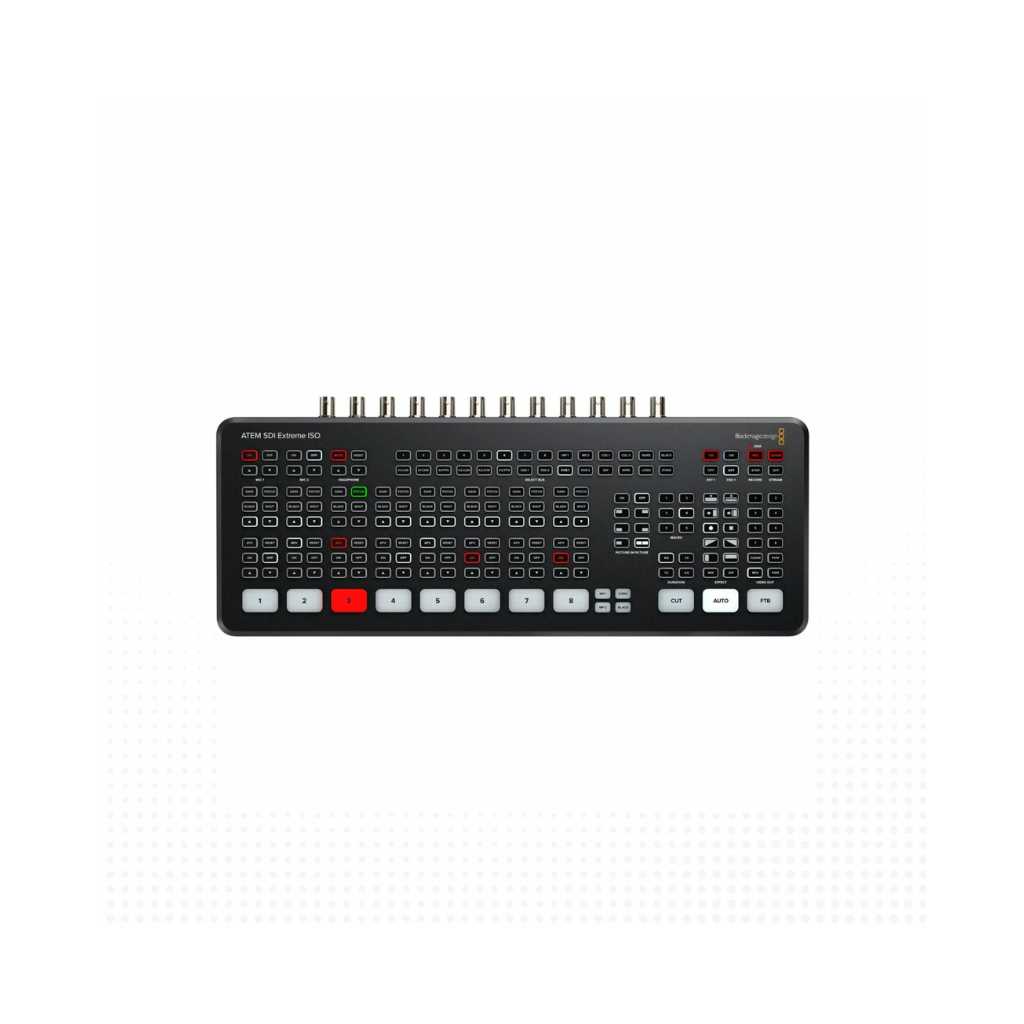

Professional 8-input SDI live switcher with ISO recording, built-in streaming, and advanced broadcast features for multi-camera production.
Only 5 currently available.
| Specification | Details |
|---|---|
| Video Inputs | 8 × 3G-SDI Inputs |
| Video Outputs | 4 × 3G-SDI Outputs + USB-C Webcam Output |
| Supported Resolution | Up to 1080p60 |
| ISO Recording | Yes (All 8 Inputs + Program Output) |
| Recording Format | H.264 MP4 |
| Streaming | RTMP via Ethernet / USB |
| Audio Inputs | 2 × 3.5mm Stereo + Embedded SDI Audio |
| Audio Mixer | 2-Channel Digital Audio Mixer |
| Multi-View | Up to 16 Views |
| Keyers | 4 Chroma Keyers + 2 Downstream Keyers |
| DVE | 2 Digital Video Effects Engines |
| Media Pool | 20 Still Images |
| Control Options | Hardware Panel + ATEM Software Control |
| USB Interface | 2 × USB-C (Webcam + Recording) |
| Network | Ethernet (Streaming & Control) |
| Latency | Broadcast-Level Low Latency |
| Power Consumption | Approx. 36W |
| Dimensions | 36.98 × 15.09 × 3.96 cm |
| Weight | 1.42 kg |
| Warranty | 1 Year Manufacturer Warranty |
