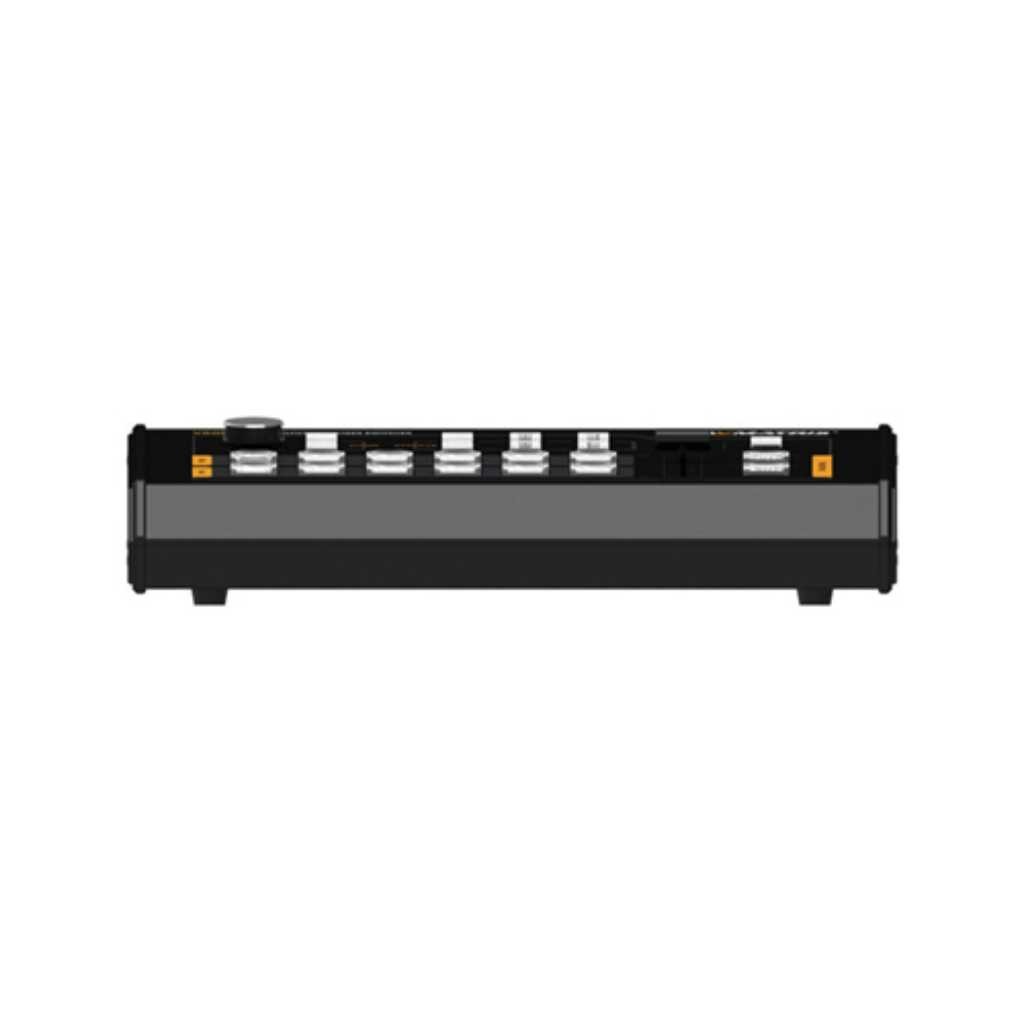

AVMatrix VS0601U Mini 6-Channel SDI/HDMI Multi-format Streaming Switcher

Specification Details Video Inputs 4 × 3G-SDI + 2 × HDMI Video Outputs 2 × SDI (PGM), 1 × HDMI (PGM), 1 × SDI AUX, SDI & HDMI Multiview USB Output USB-C (UVC Streaming Output) Supported Resolution Up to 1080p60 Streaming Via USB-C to PC (Zoom, YouTube, OBS, etc.) Switching Type T-Bar, Auto, Cut Effects Mix, Fade, Wipe, PiP/PoP Audio Inputs 3.5mm Stereo + RCA + Embedded HDMI/SDI Audio Audio Outputs 3.5mm Stereo + RCA Audio Mixer Built-in Digital Audio Mixer with AFV Multiview 6-Source Multiview (HDMI & SDI) GPIO Tally Interface Support Frame Sync Yes (Auto format detection) Control Options Hardware Panel Latency Low Latency Switching Build Type Compact Metal Portable Design Dimensions Approx. 249 × 172 × 55 mm Weight ≈ 1.2 kg Warranty 2 Year Manufacturer Warranty
