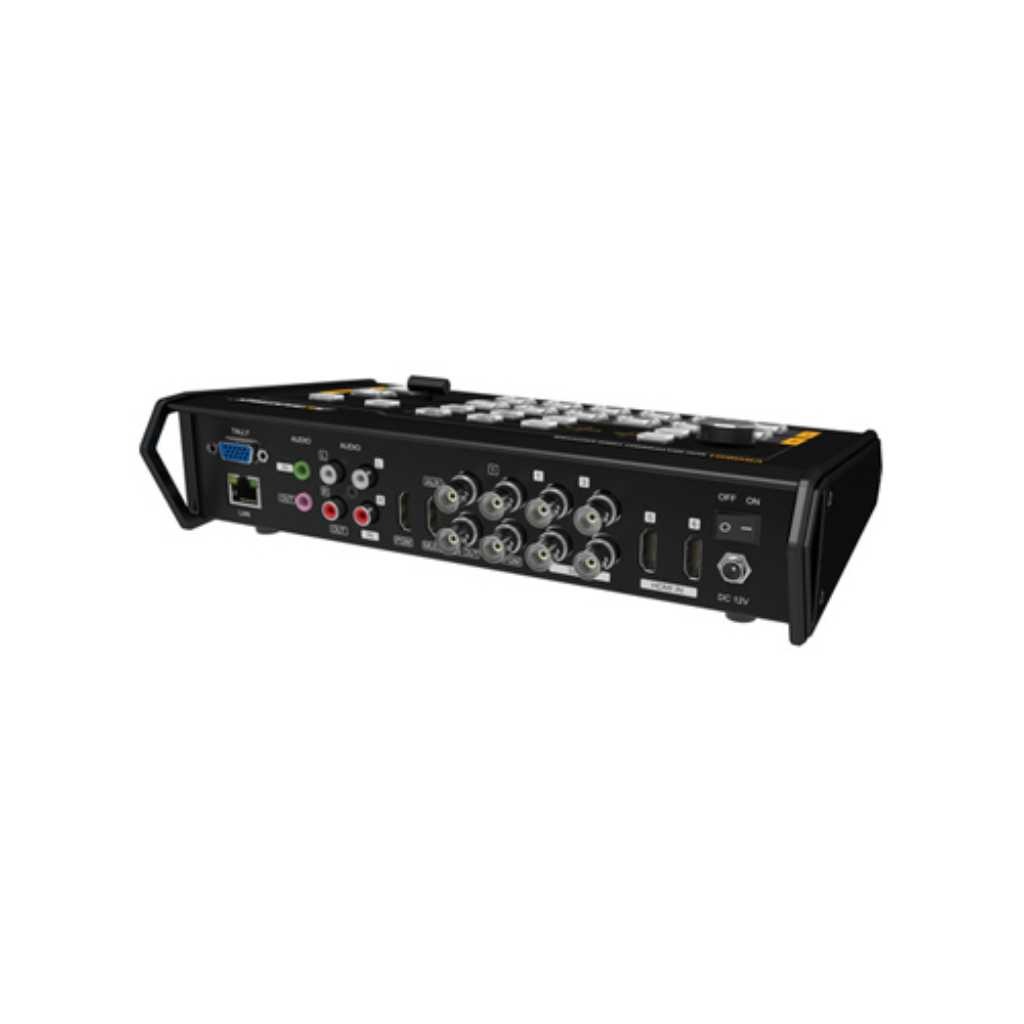

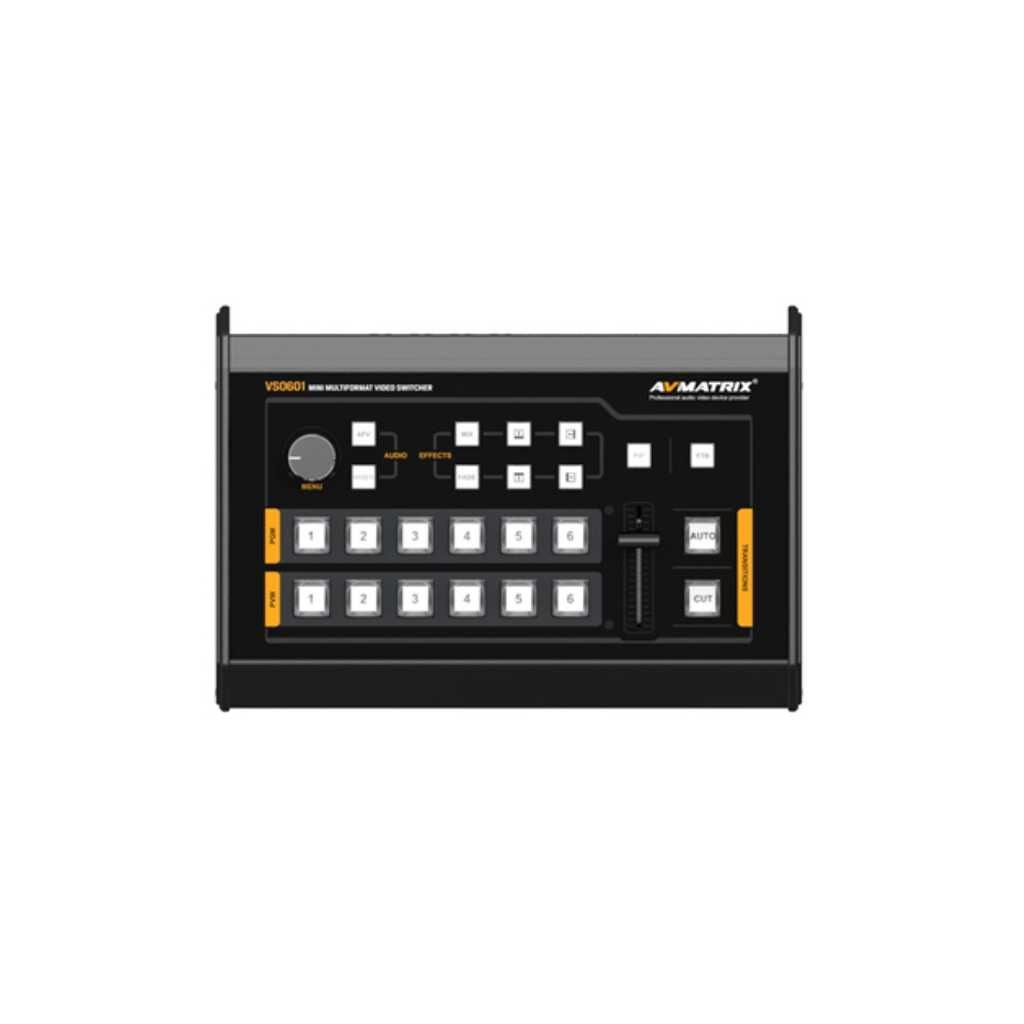

AVMatrix VS0601 Mini 6-Channel SDI/HDMI Multi-format Video Switcher

Specification Details Video Inputs 4 × 3G-SDI + 2 × HDMI Video Outputs 2 × SDI + 1 × HDMI (Program), 1 × SDI AUX, SDI & HDMI Multiview Supported Resolution Up to 1080p60 Switching Type T-Bar, Auto, Cut Effects Mix, Fade, Wipe, PiP Audio Inputs 3.5mm Stereo + RCA + Embedded HDMI/SDI Audio Audio Outputs 3.5mm Stereo + RCA Audio Mixer Built-in Digital Audio Mixer Multiview HDMI & SDI Multiview Output GPIO Tally Interface Support Streaming USB-C (UVC via VS0601U variant) Control Options Hardware Panel Latency Low Latency Switching Build Type Compact Portable Design Weight Approx. 1.5 – 2.0 kg (Estimated Class Weight) Warranty 2 Year Manufacturer Warranty
