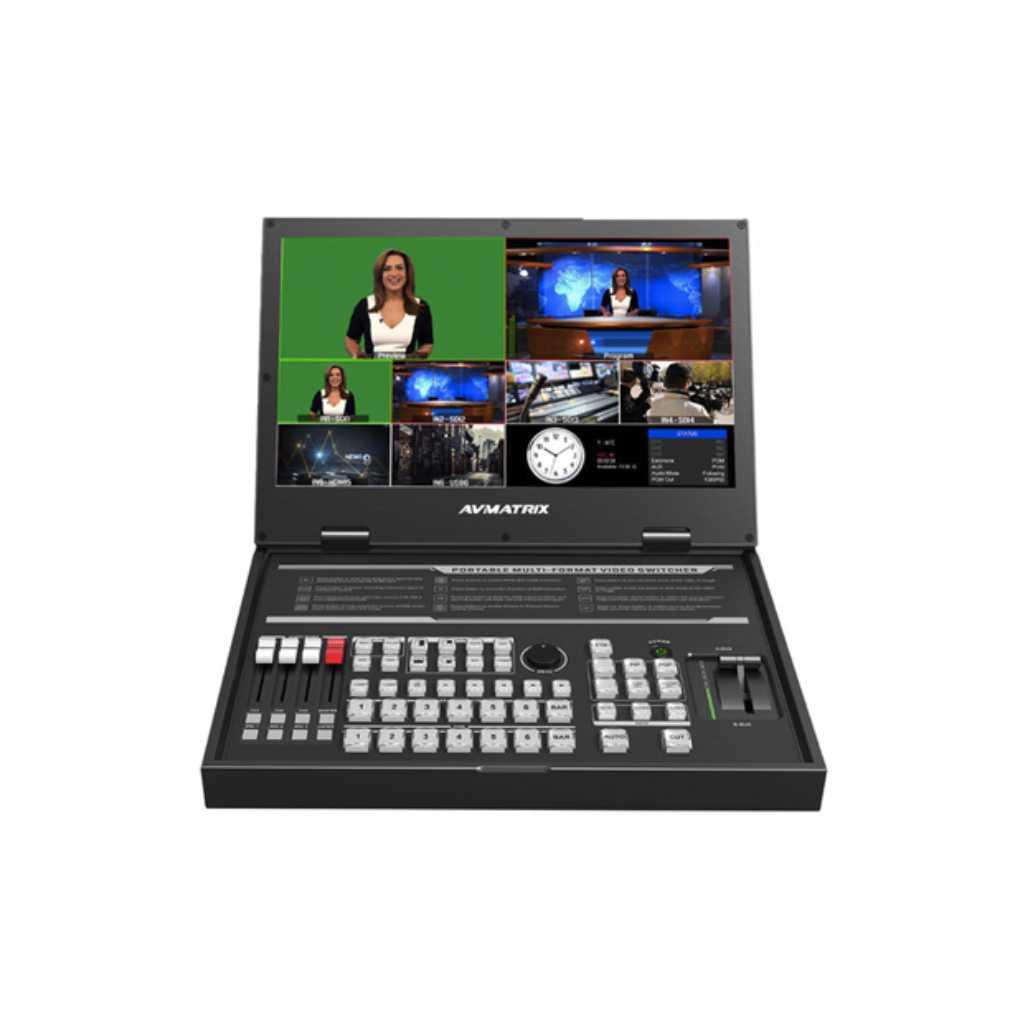

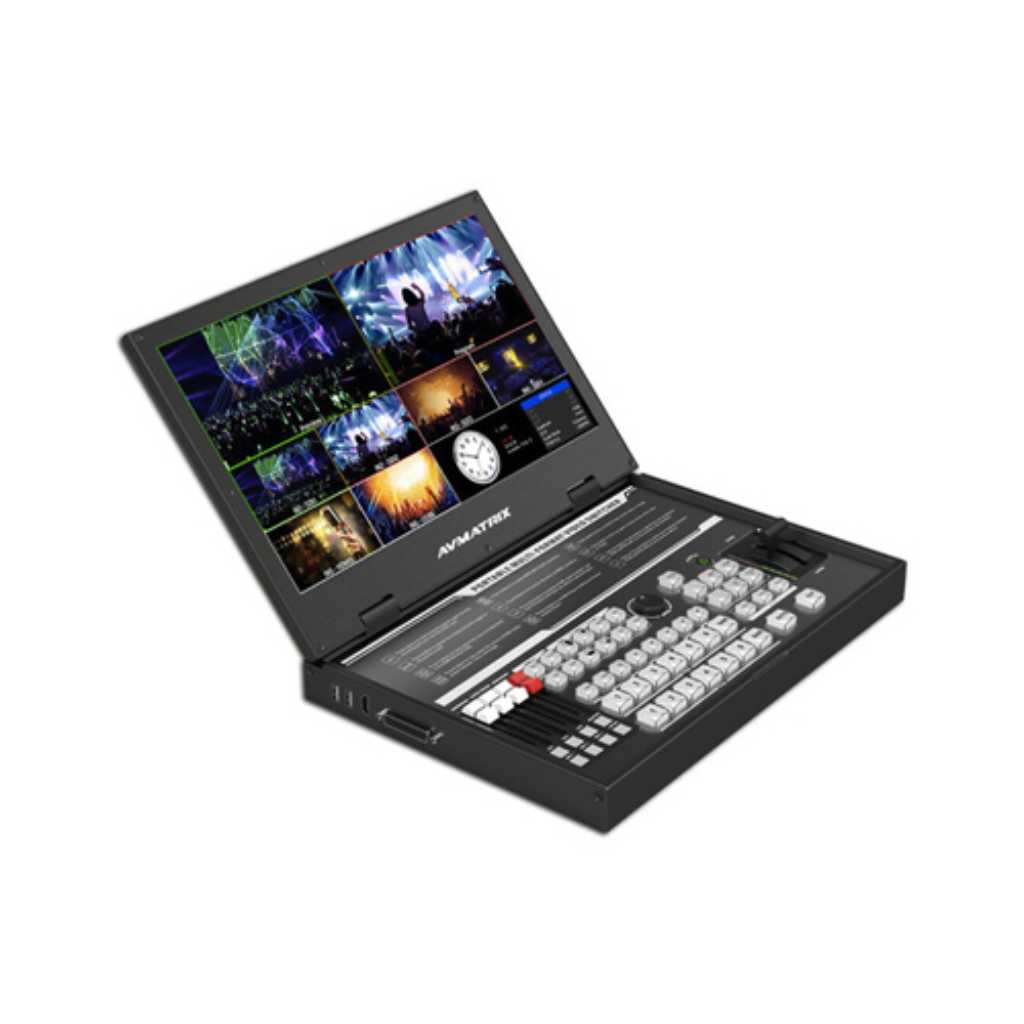

AVMatrix PVS0615U Portable 6-Channel Switcher

Specification Details Video Inputs 4 × 3G-SDI + 2 × HDMI (Supports DVI/VGA/USB Inputs) Video Outputs 2 × HDMI (PGM), 3 × SDI (PGM/AUX), 1 × HDMI Multiview Supported Resolution Up to 1080p60 (HD Output), HDMI Input up to 4K60 Display 15.6″ Full HD IPS (1920 × 1080) Streaming Output USB-C (UVC/UAC) Recording SD Card (H.264, up to 1080p60) Switching Type T-Bar, Auto, Cut Effects Mix, Fade, Wipe, PiP, Chroma Key, Luma Key Audio Inputs RCA (Analog) + Embedded HDMI/SDI Audio Audio Outputs RCA + 3.5mm Audio Mixer Built-in Digital Audio Mixer Multiview 6-Source Multiview with Audio Meter Network Ethernet (Firmware / Sync / Control) USB Ports USB-A (Media Input), USB-C (Streaming) Latency Low Latency Switching Build Type Portable All-in-One Metal Design Dimensions 375 × 272 × 44 mm Weight Approx. 4 kg Power Consumption Approx. 33W Warranty 2 Year Manufacturer Warranty
