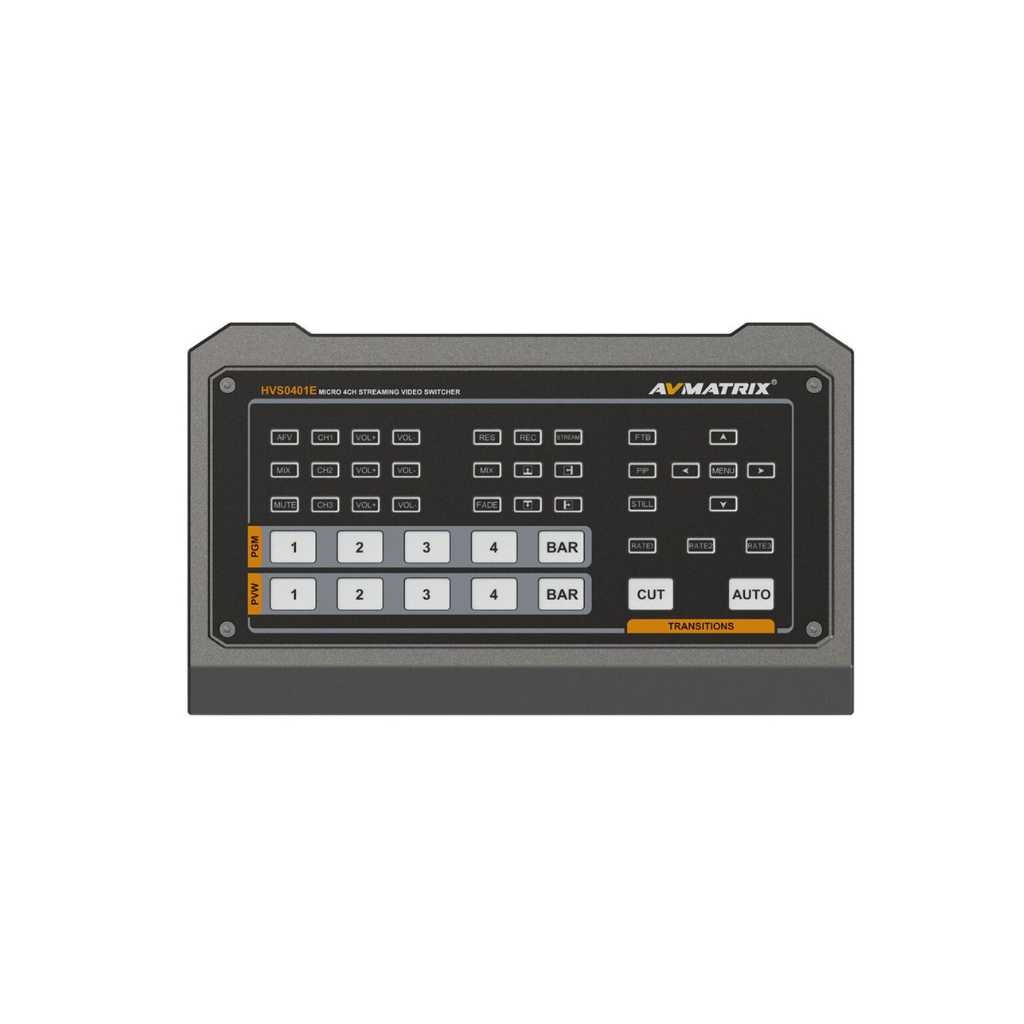

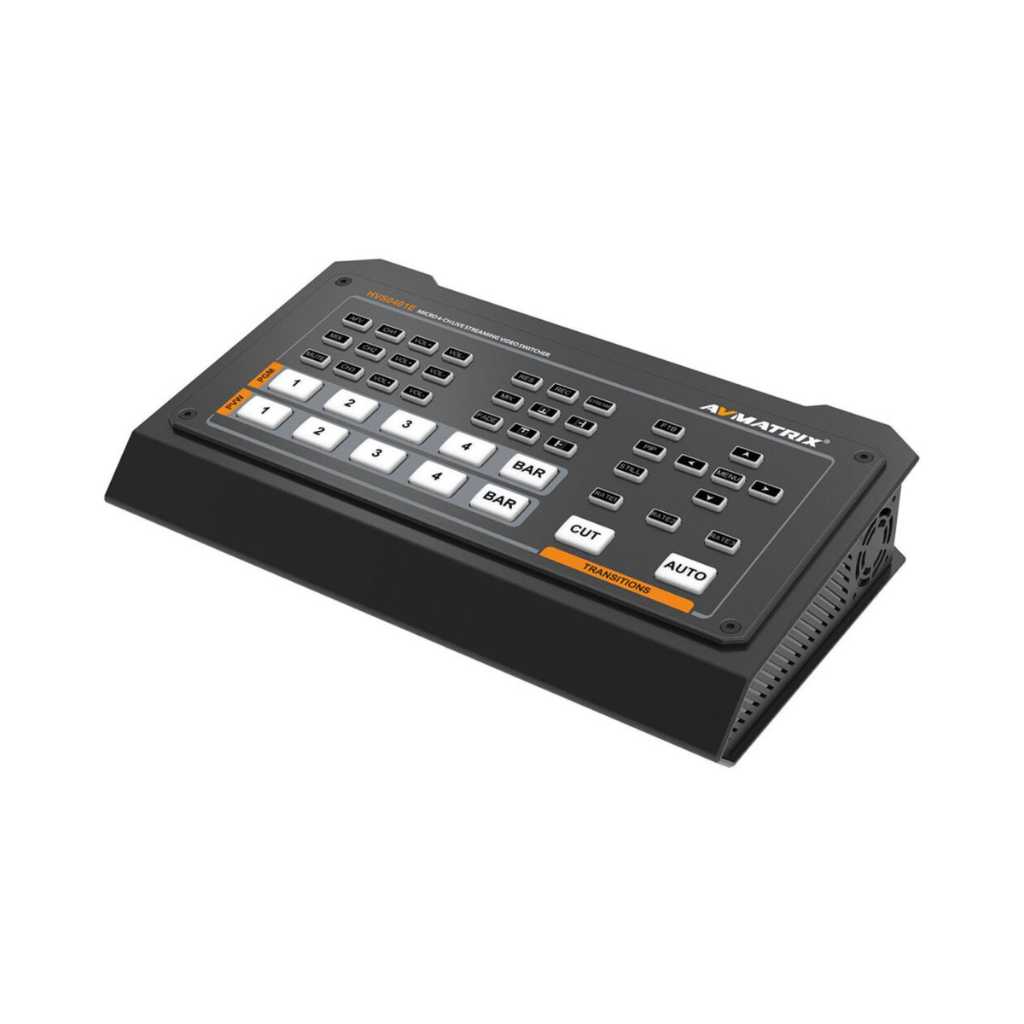

AVMatrix HVS0401E Micro 4-Channel HDMI & DP Video Switcher

Specification Details Video Inputs 4 × HDMI + 1 × DisplayPort (shared input) Video Outputs 2 × HDMI Program Out, 1 × HDMI Multiview Supported Resolution Up to 1080p60 Streaming RTMP via Ethernet USB Interface USB-C (UVC Capture) + USB-A (Recording) Recording USB Drive (MP4 / TS, H.264/H.265) Audio Inputs 2 × 3.5mm + RCA + Embedded HDMI Audio Audio Outputs 3.5mm Stereo Audio Mixer Built-in Digital Audio Mixer Effects PiP, Mix, Fade, Wipe Transitions Control Options Hardware Buttons, T-Bar, IP Control Multiview Yes Network Ethernet (Streaming & Control) GPIO Tally Interface Support Latency Low Latency Switching Power Consumption Approx. 14.4W Dimensions 238 × 140 × 44 mm Weight Approx. 968 g Warranty 3 Year Manufacturer Warranty
