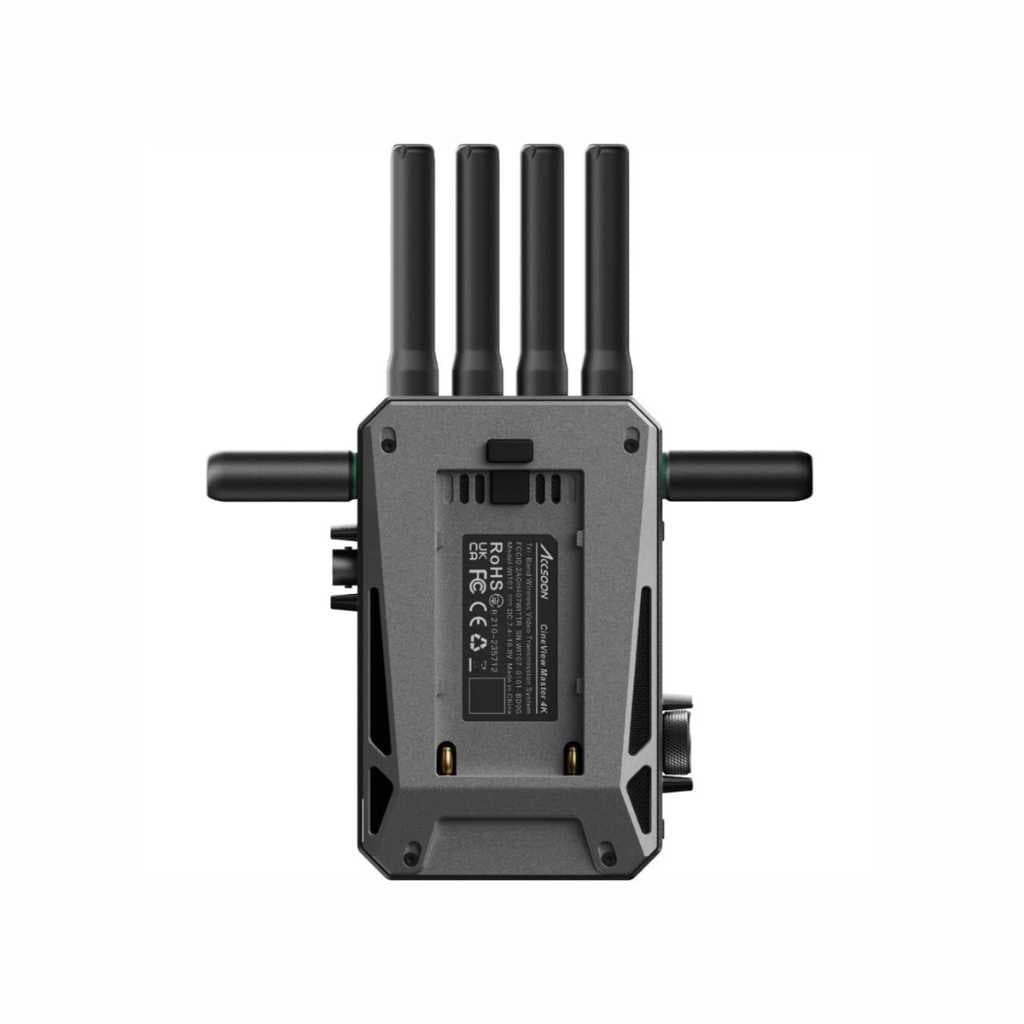

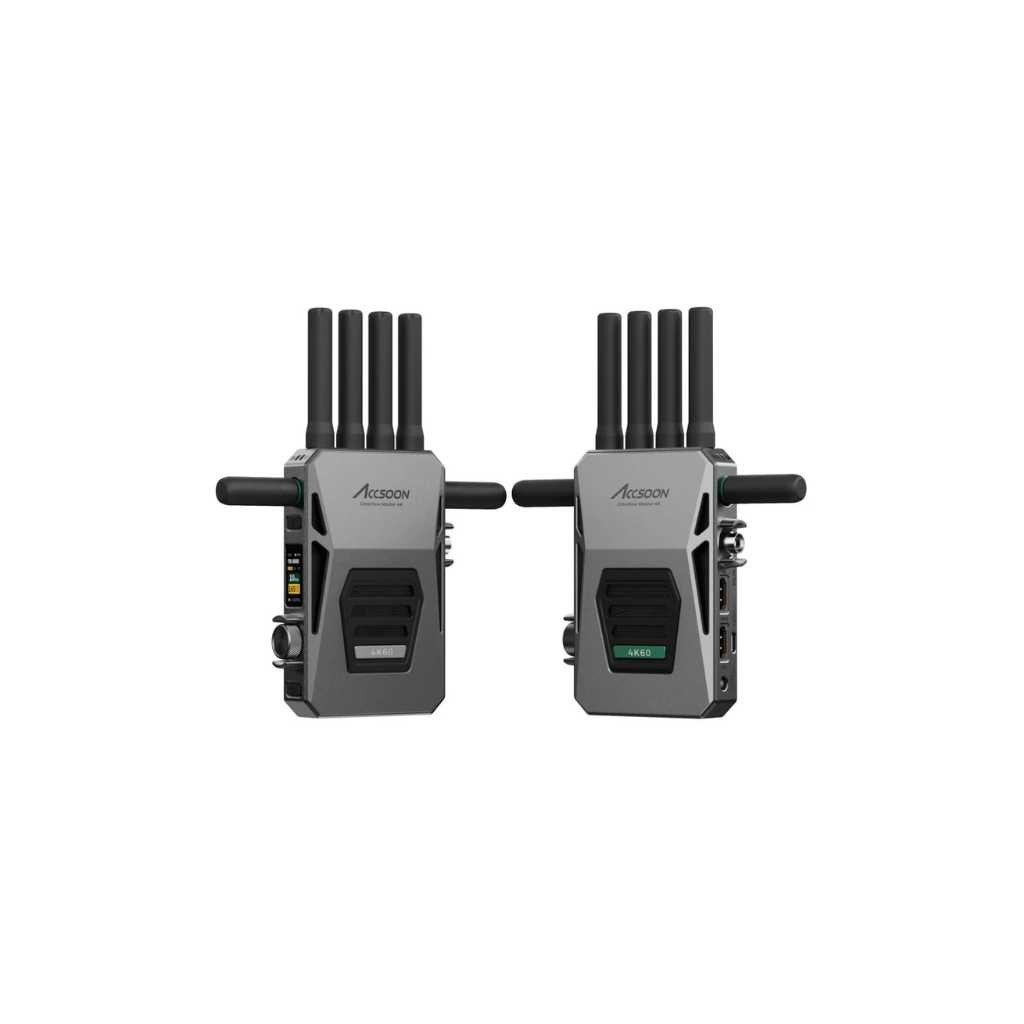

Accsoon CineView Master 4K Wireless Video Transmission System

Specification Details Video Resolution Up to 4K UHD (3840×2160) Video Inputs HDMI, 3G-SDI Video Outputs HDMI, SDI Supported Formats 4K, 1080p, 720p Frame Rate Up to 60fps Transmission Range Up to 2.5 km (Line of Sight) Latency <25ms (1080p), <35ms (4K) Wireless Frequency Tri-Band 2.4GHz / 5GHz / 6GHz Transmission Technology RTMS 4.0 Protocol Processor High-Performance 8K Processor Display No built-in display Control Interface Buttons & Mobile App Streaming Support Yes Recording Support No Storage Media Not Supported Network Connectivity Wi-Fi USB Ports USB Type-C HDMI Ports 1 Input, Loop Out SDI Ports 1 Input / Output Power Consumption Approx. 5–6.5W Operating Voltage DC 7.4V – 16.8V Battery Compatibility Sony NP-F Series, V-Mount Build Material Metal Alloy Dimensions 130 × 95 × 32 mm Weight Approx. 320–322 g per unit Operating Temperature -10°C to 40°C Multi-Device Support Up to 5 Devices (1 wired + 4 wireless) Included Accessories Transmitter, Receiver, Antennas, Power Cable, Mounting Kit Warranty Period 1 Year Warranty Type Manufacturer Warranty Service Support Authorized Service Centers
